Service vehicles · FLS series
Fuel & lubeService modules
FLS-series service modules for off-highway trucks: best-in-class capacities on a certified superstructure, built modular so the fluid layout matches your fleet, not the other way around.
- AS 2809Certified superstructure
- MDG41Compliant hydraulics
- IP67Electrical enclosures
FLS-63 on CAT 777 · handover · Acacia Ridge
Certification
Certified before it fuels anything
The complete superstructure design is certified to AS 2809, AS 1692, AS 4100 and AS 3990. Hydraulic systems are MDG41 compliant. Every module is designed and manufactured in our own facility. The same discipline we apply to protective structures applies to everything that carries fuel.
- AS 2809Road tank vehicles
- AS 1692Tanks for flammable liquids
- AS 4100Steel structures
- AS 3990Mechanical equipment
- MDG41Fluid power systems
Standard features
Built around the service crew
Diesel fast fill
Multiple fill options from 120 to 800 litres per minute, with fast-fill shut-off valves and electronic pressure release.
High-volume grease
High-pressure grease delivery with remote-controlled release, high volume where the service schedule demands it.
MDG41 hydraulics

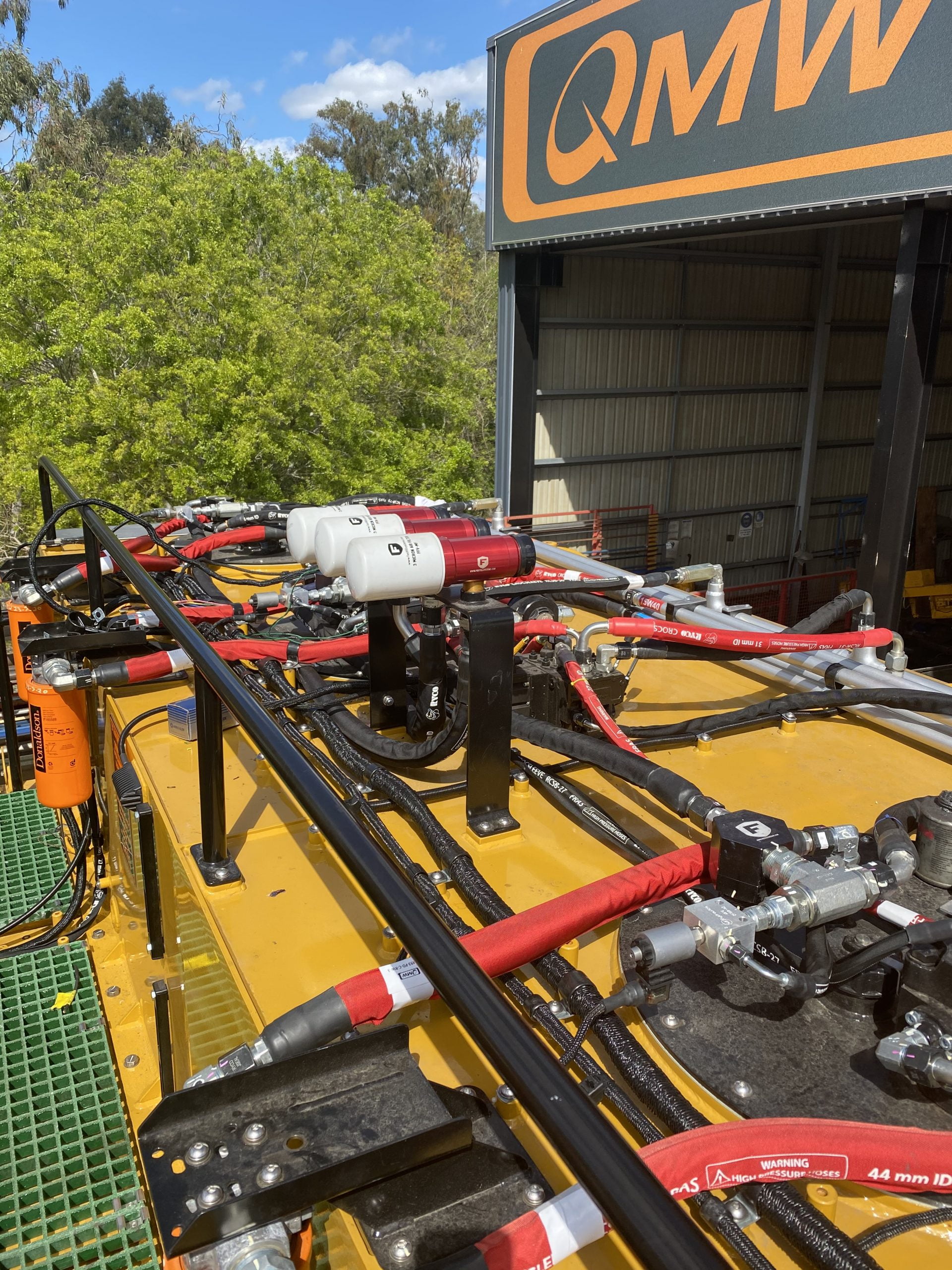

Simultaneous multi-function operation, remote-controlled hose rewind, hydraulic-driven screw compressor and pressure washer with lance.
Filtration and sampling
Donaldson and Parker filtration, push-button service oil sampling ports, and Banlaw crankcase receivers fitted to all product tanks.
IP67 electrical
Electronic level sensors with visual sight glass, LED lighting, Deutsch connectors with detector light, and a triple-insulated plug-and-play harness. Enclosures rated to IP67.

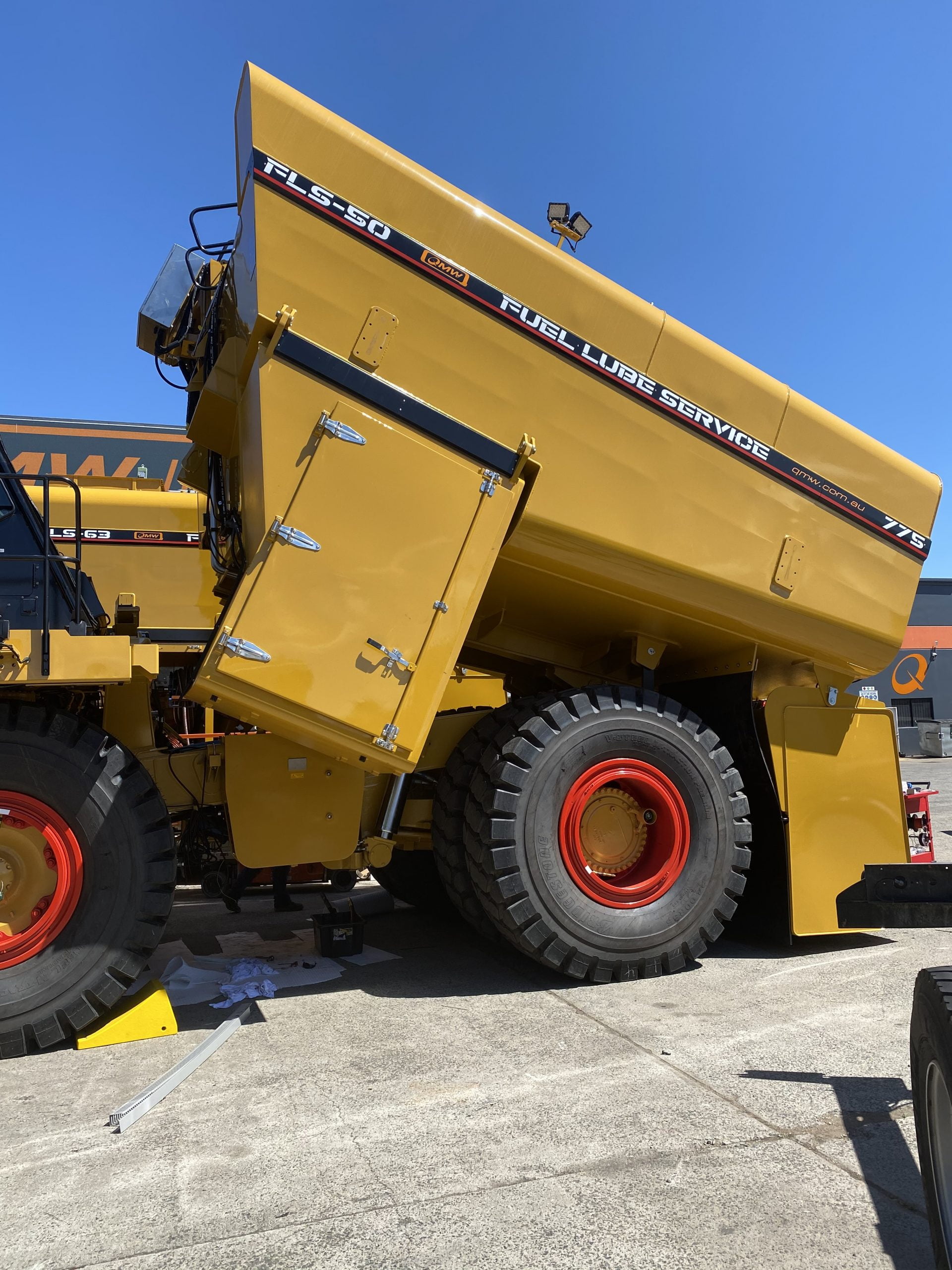

Modular fluid design
Different fluid options on one platform (diesel, oils, coolant, grease, waste) with fold-out decks and ergonomic reel layouts. Optional fire suppression. Custom configurations engineered to your service schedule.
Serviceable by design

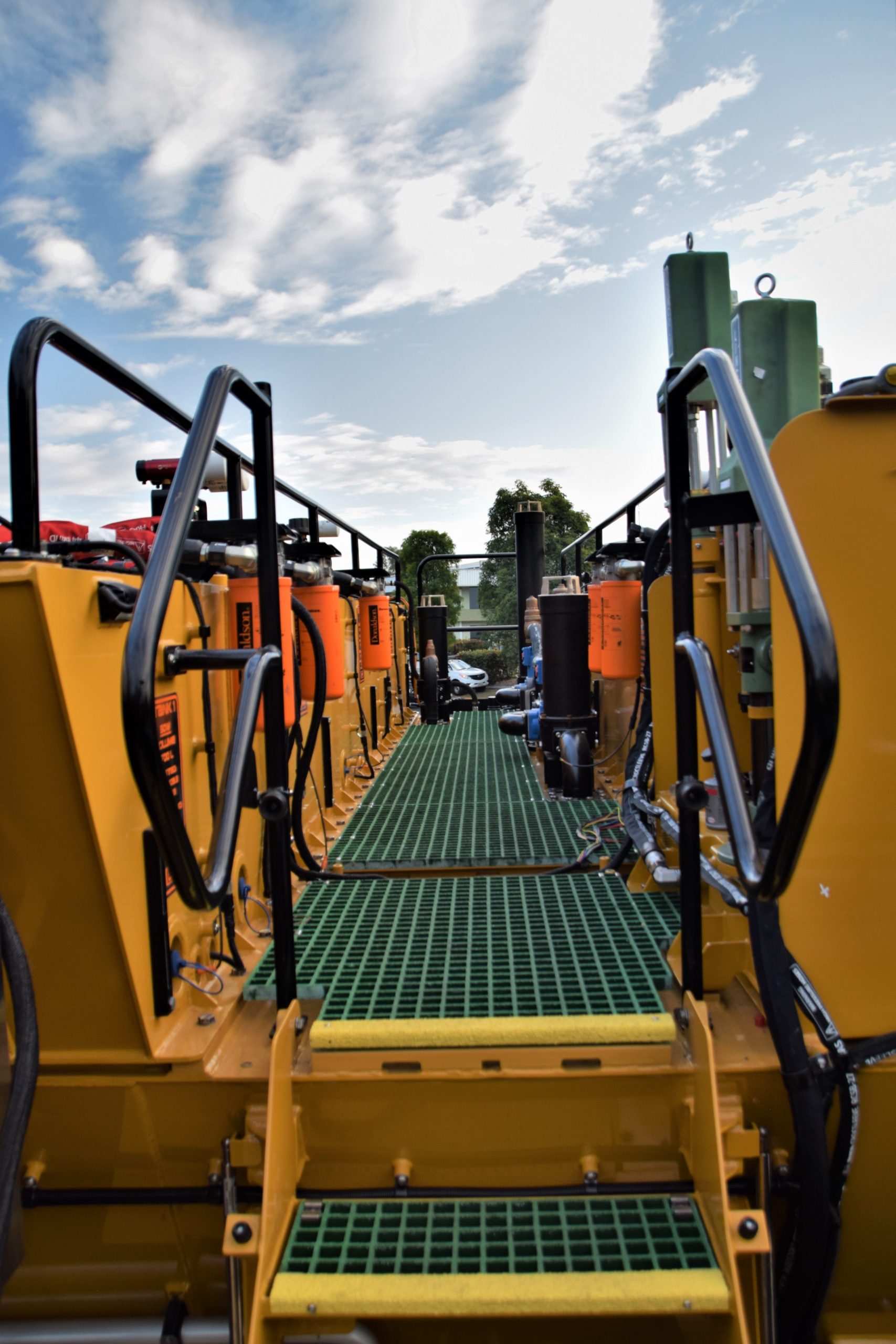

Hoist body for chassis access, drain points, and an ergonomic filtration layout with a central walkway. Built for the people who work on it.
Fleet system integration

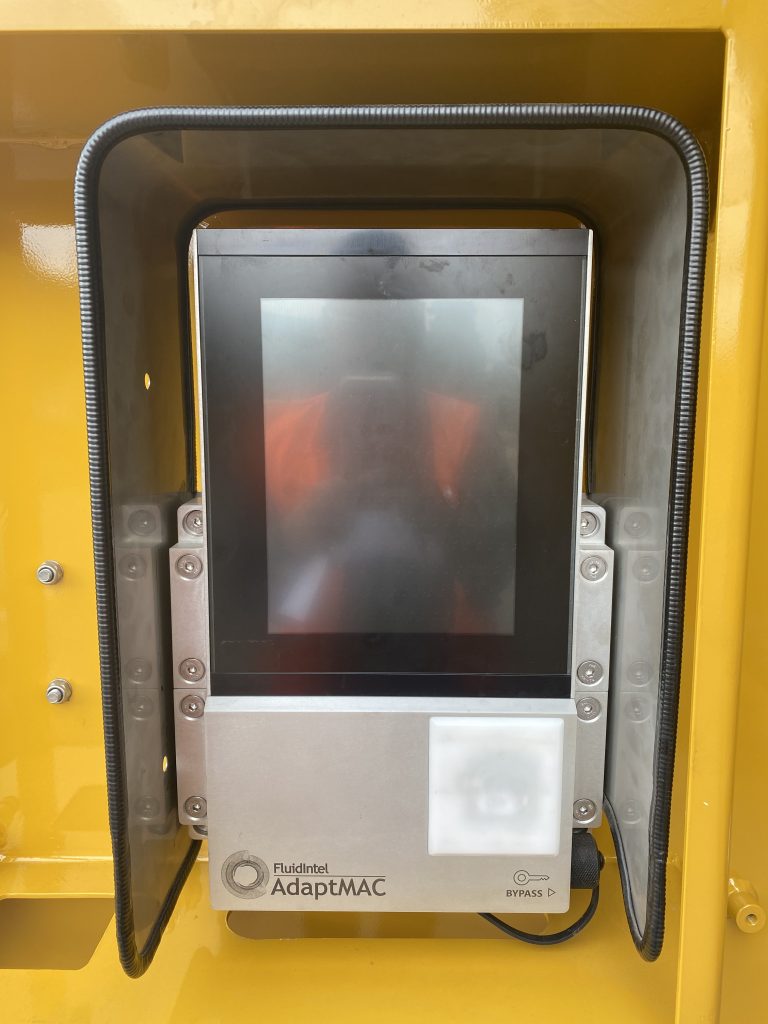

Ready for fleet and fuel management system integration, dispensing data where your site systems expect it.

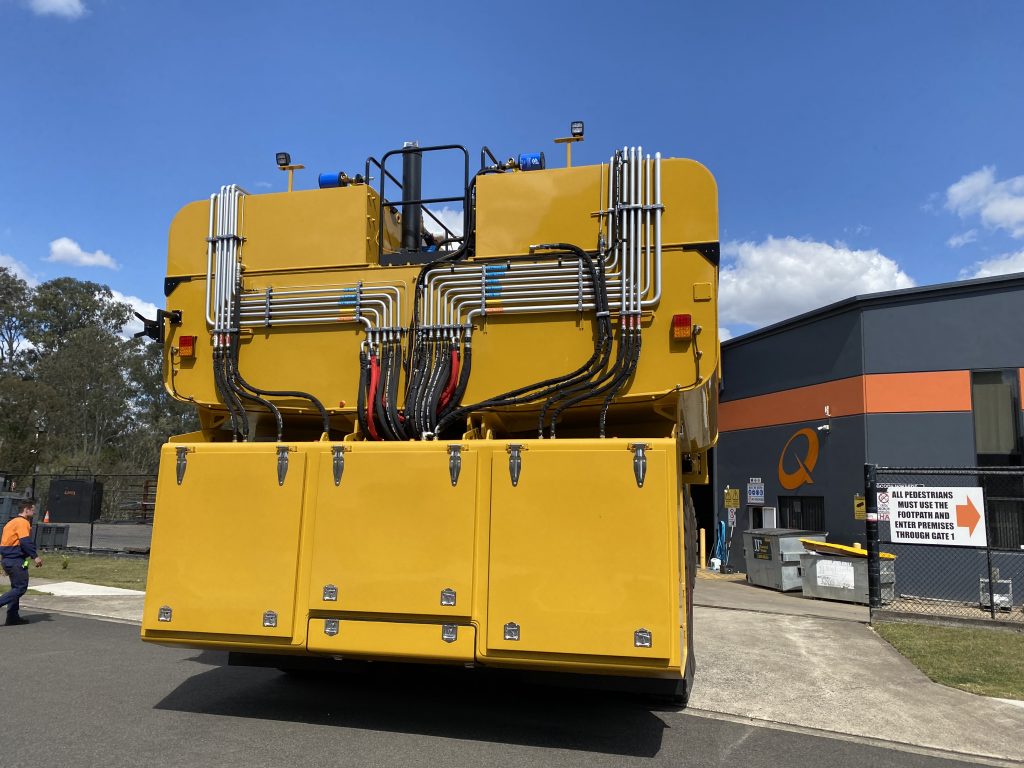

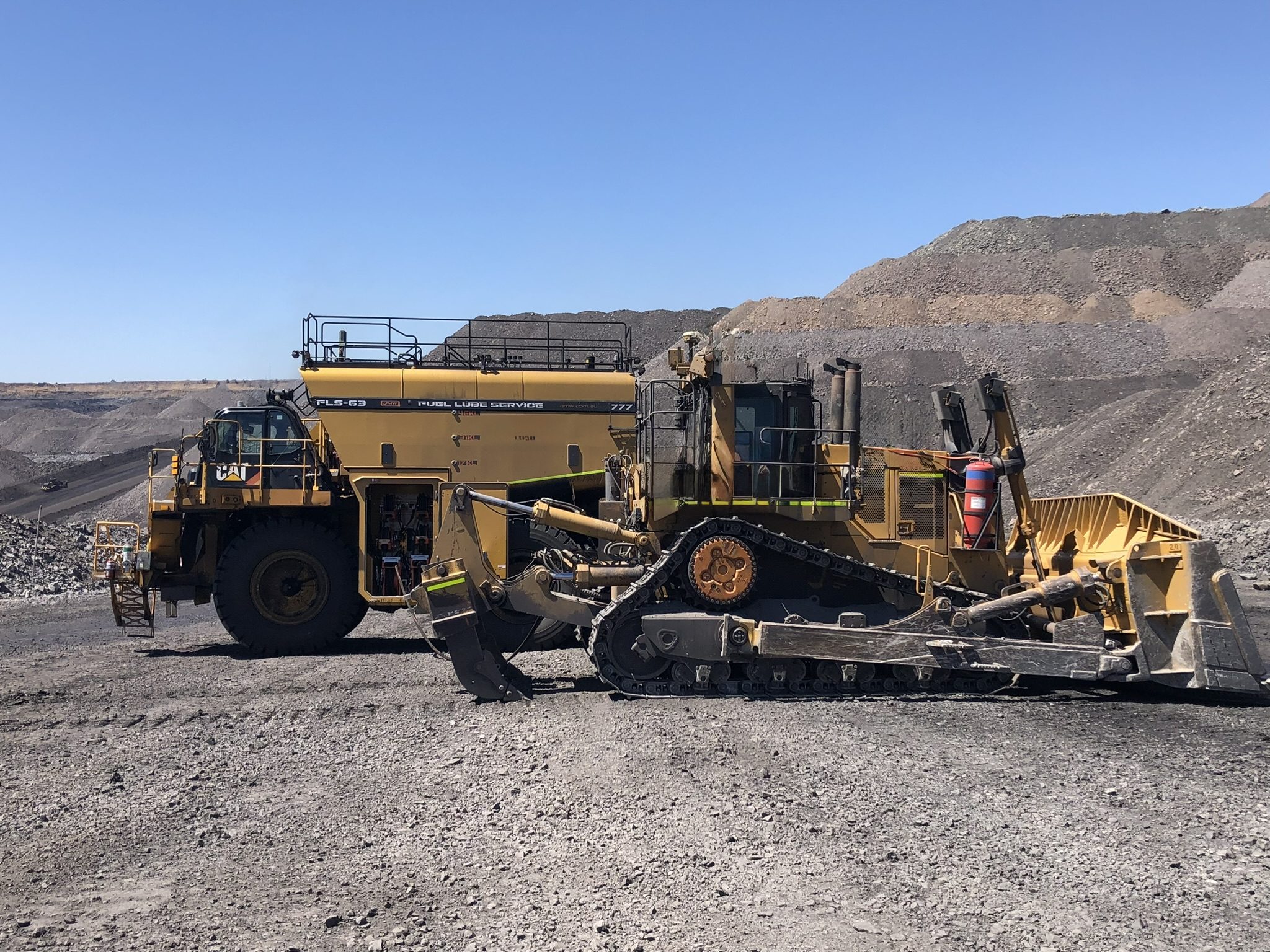

In the field
Working modules
Materials and protection
Finished like it matters
Certified structure
Complete superstructure certified to AS 2809, AS 1692, AS 4100 and AS 3990, designed and documented in-house.
Coating system
Two-pac polyurethane coating system throughout. Stainless steel hydraulic components in the fluid circuits.
Platform fit

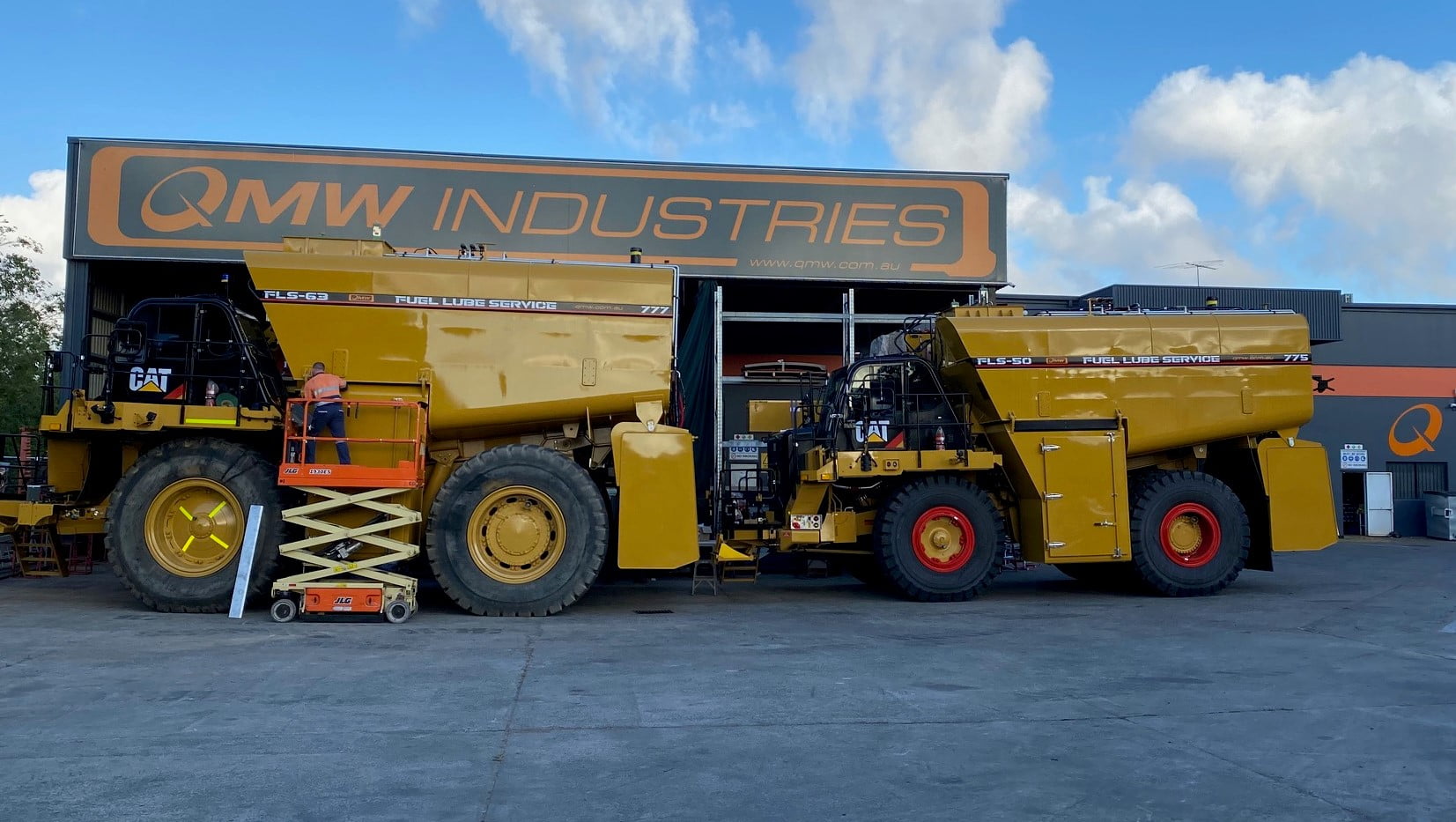

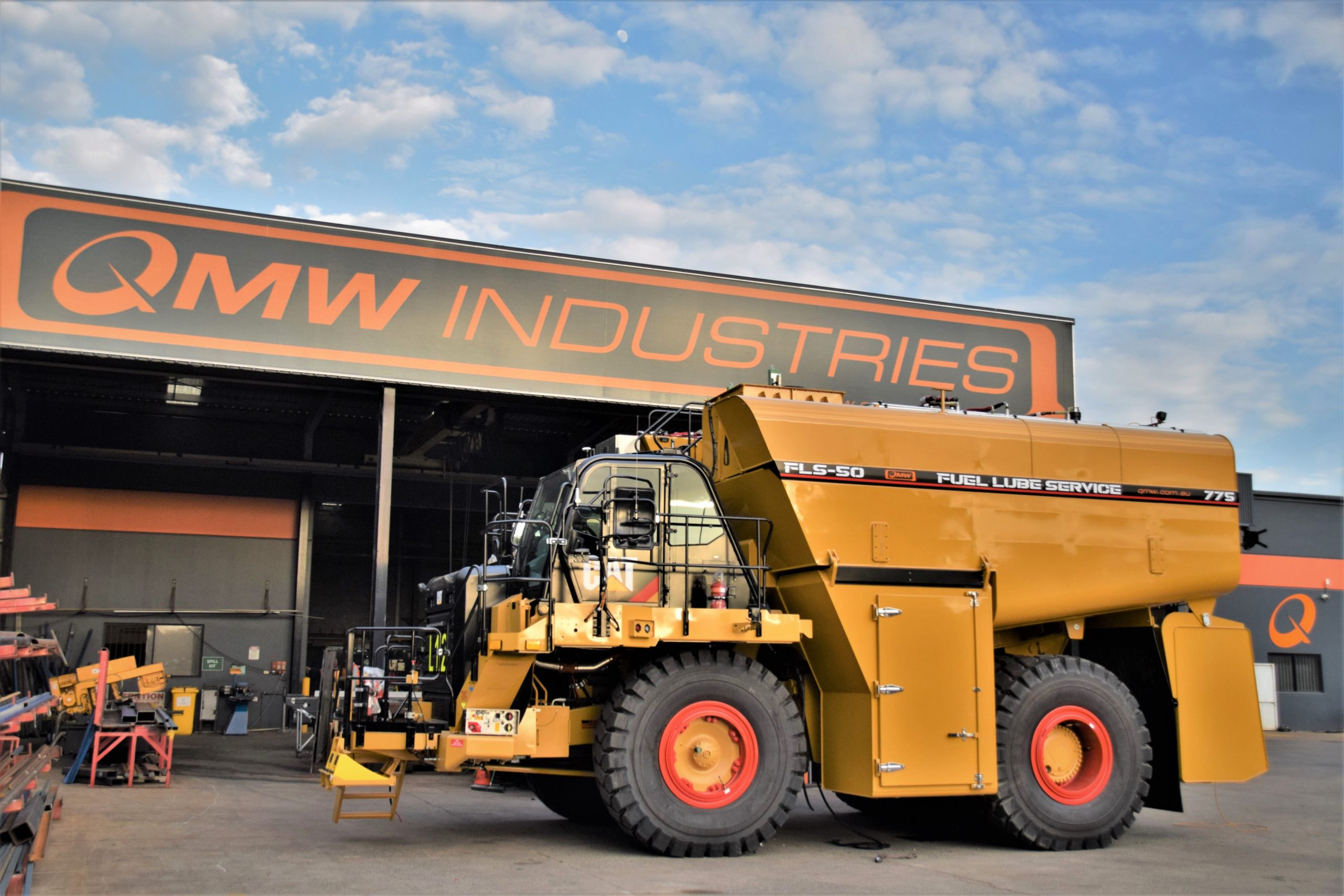

Modular units accommodate CAT and Komatsu dumptruck platforms across makes and models. Custom platforms on request.

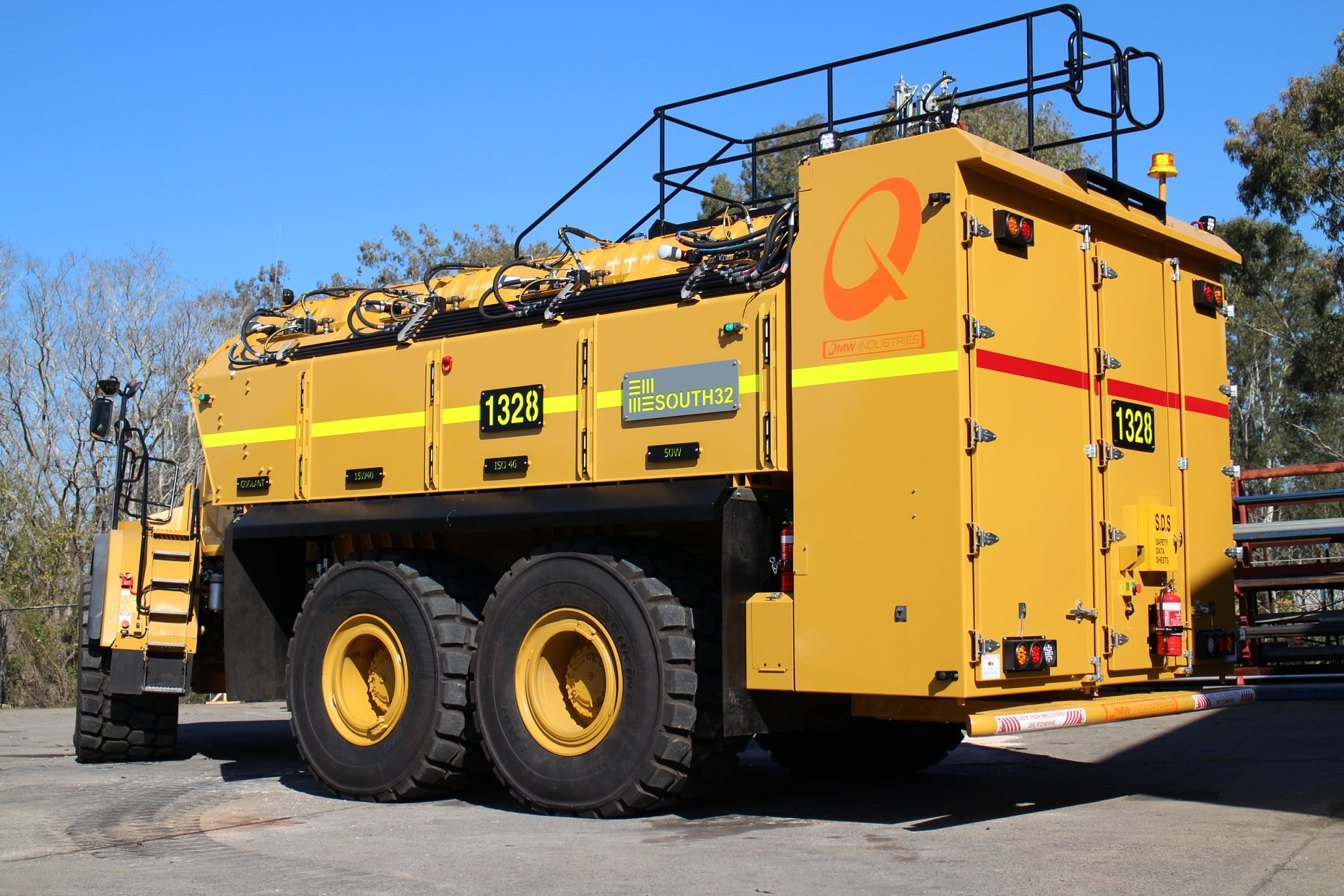

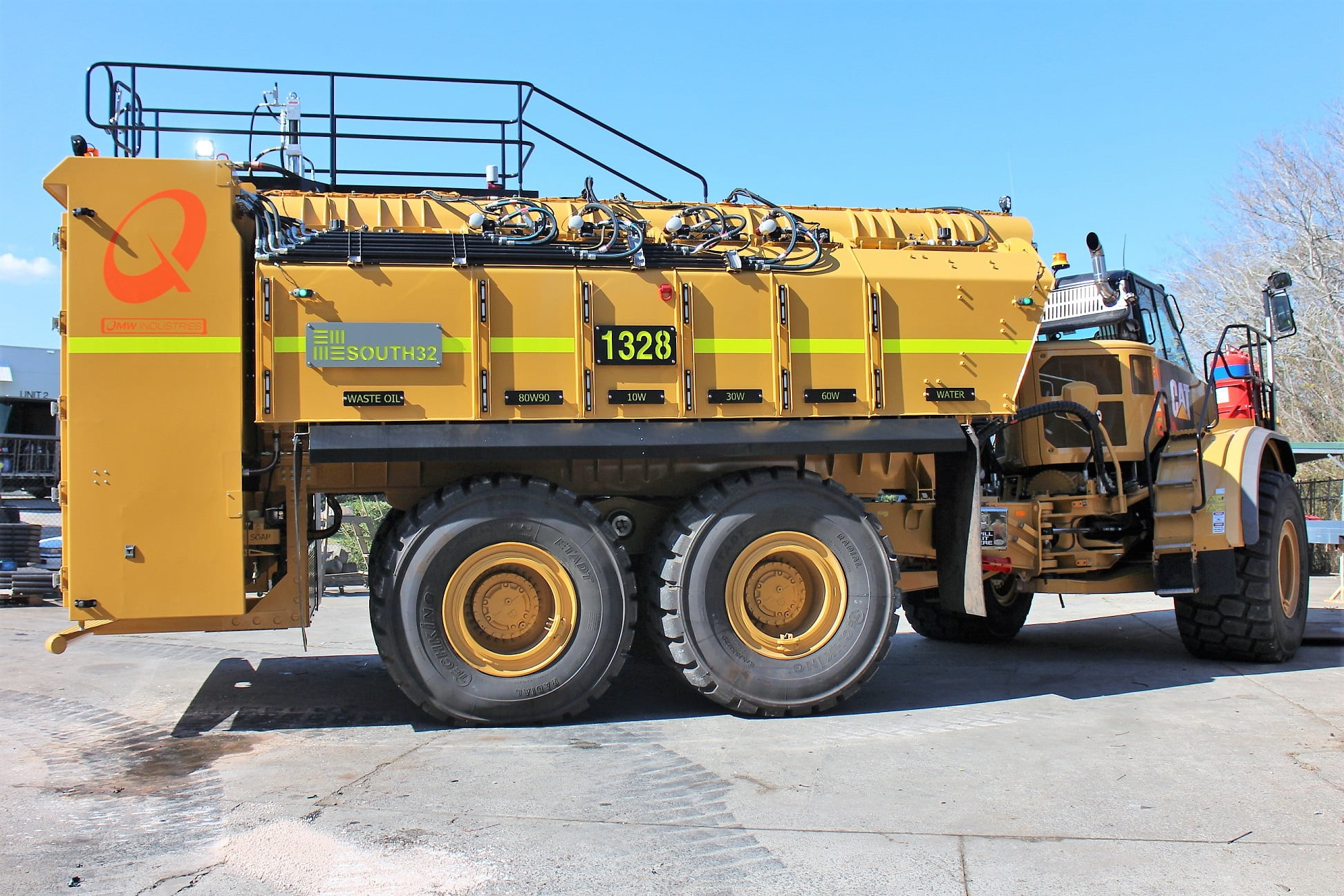

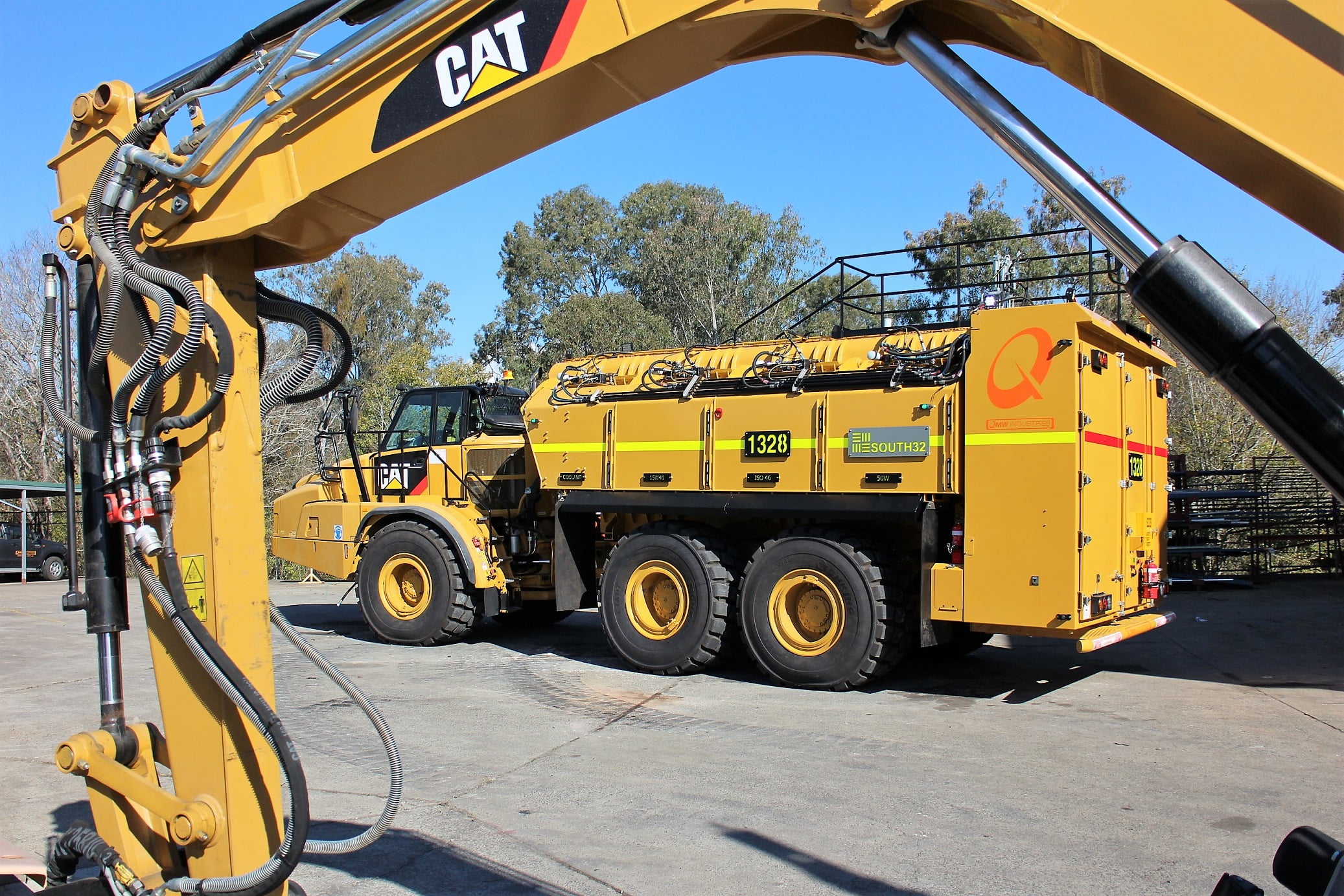

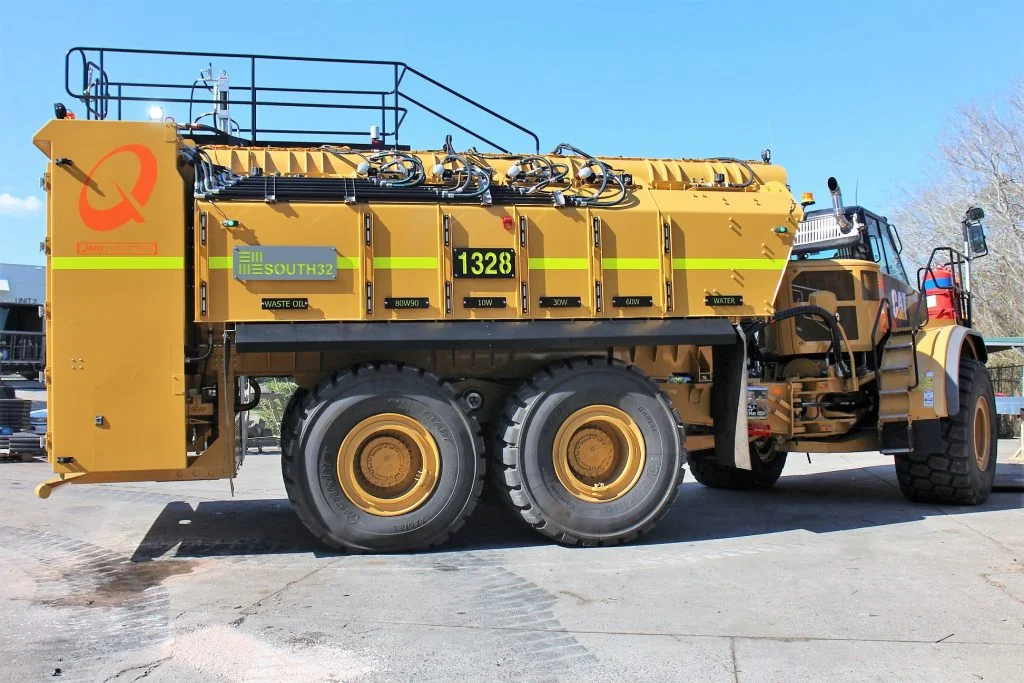

Recent builds include lube trucks on the CAT 745C articulated platform. See custom engineeringfor turnkey examples.
