Water equipment · off-road mining
Off-roadWater tankers
Built for the world's largest mining trucks: 50KL to 150KLdust suppression capacity across the CAT fleet. Engineered for optimal weight distribution and stability under full load.
- ISO 9001:2015 certified
- AS 1627.2Coating standard
- NATAAccredited No. 15369

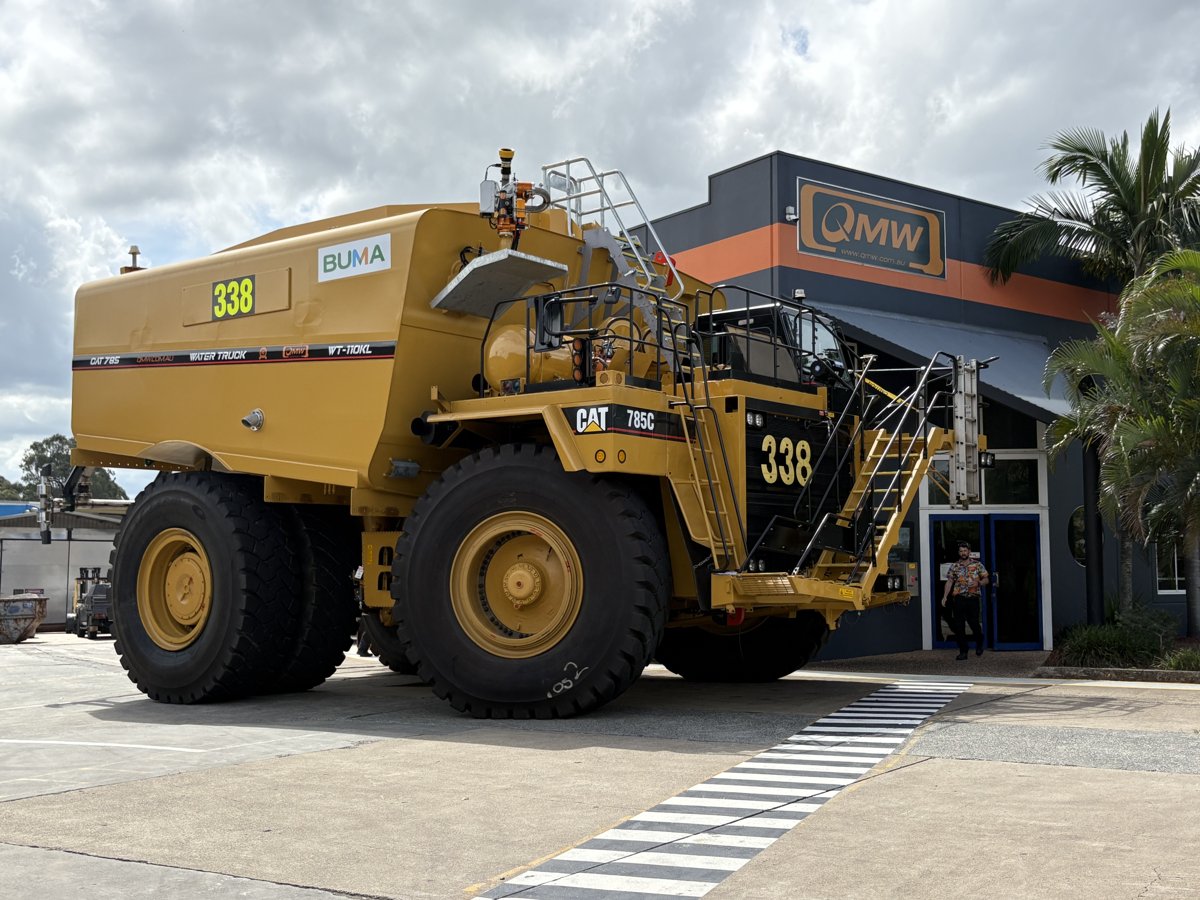

Spray commissioning · Acacia Ridge
Technical data
Specifications by machine
| Specification | CAT 773 / 775 | CAT 777 | CAT 785 | CAT 789 |
|---|---|---|---|---|
| Volume (nominal) | 50 KL | 80 KL | 110 KL | 150 KL |
| Overall length | 10.8 m | 11.0 m | 11.9 m | 12.5 m |
| Tank width | 4.4 m | 5.6 m | 6.4 m | 7.0 m |
| Height | 5.6 m | 6.1 m | 6.4 m | 7.2 m |
| Spray bar height | 1.9 m | 2.7 m | 3.0 m | 3.1 m |
| Tare mass (tank assembly) | 15.5 t | 24.0 t | 32.0 t | 39.0 t |
| Gross vehicle mass (full) | 102.0 t | 164.7 t | 224.0 t | 295.7 t |
| Static roll threshold (SRT) | 0.43 g | 0.43 g | 0.51 g | 0.50 g |
| SRT category | Medium | Medium | High stability | Medium |
| Coating · external | AS 1627.2 Class 2.5 grit blast · Dulux Durepon EZP + Weathermax HBR | |||
| Coating · internal | Duremax GFX · stainless steel pipework and fasteners throughout | |||
Nominal specifications. Final specs vary with chassis configuration, optional equipment and site requirements. SRT parameters available on request.
Standard features
Built for mine site demands
Premium cannon system
CAT WDS or 3″ stainless steel ADE water cannon: high-capacity long-throw spray with full joystick control and adjustable spray patterns.
GPS spray system
GPS-controlled rear spray with metered, spot, zig-zag and flood modes. Auto shut-off at low speed, touch display, digital tank gauge, diagnostics and USB data logging.
Hoist locking pin
Front-mounted electric actuated pin secures the tank in a roll-over event and prevents hoisting while the tank contains water.
Split rear pivot
Engineered mount allows lifting and placement without working under a suspended load, critical for safe, compliant maintenance access.
Tilt stay bar
Provides additional safety control when servicing in the tilted position. Stows securely when not in use. Engineered to the same standard as the core module.
Integrated hydraulics
Truck hoist pump supplies hydraulic power via the hoist valve circuit. All return and case drain oil feeds directly to the CAT hydraulic tank. No auxiliary reservoir required.
Cameras and LED lamps
Integrated reverse camera linked to the truck's on-board display. Rear and forward LED work lamps illuminate the fill funnel and spray bar area.
Safe tank access
Folding stairs for compliant roof access. Rated harness anchor points on both tank roof and underside for safe elevated maintenance work.
Materials and protection
Coating system
Surface preparation
AS 1627.2 Class 2.5 grit blast on all carbon steel. Stainless steel pipework and fasteners throughout all fluid circuits.
External coating
Dulux Durepon EZP primer with Weathermax HBR topcoat. Superior corrosion and UV resistance. Custom mine site colours available.
Internal coating
Duremax GFX internal system. Hot-dip galvanised auxiliary fittings. Designed for continuous water contact with minimal maintenance overhead.
Optional equipment
Options and accessories
All optional assemblies are engineered to the same durability and safety standards as the core module. Structural integrity and stability characteristics hold throughout.
1-2876-012

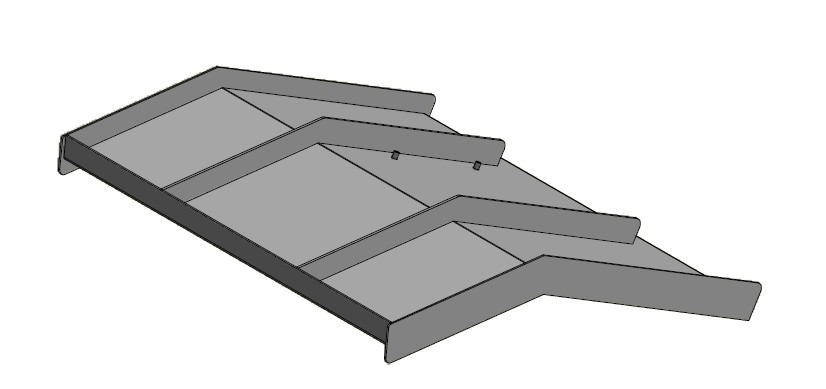

Cannon splash guard
Fabricated steel shield protecting the cannon mount from high-pressure spray and debris deflection during haul cycle operation.
1-2876-016

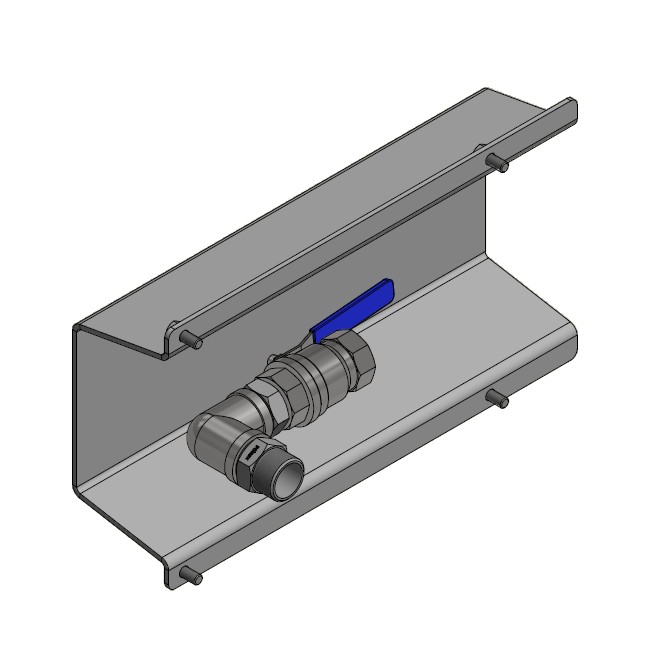

Level sensor guard
Channel-section guard protecting the tank level sensor and ball valve assembly from impact and operational debris on site.
1-2876-003 ×2

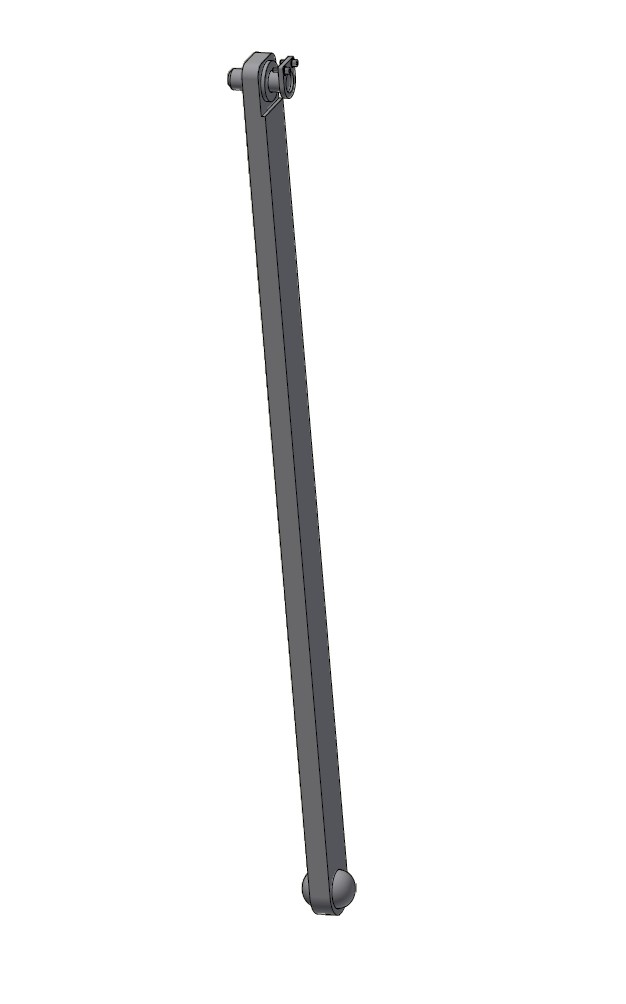

Rock ejector assembly
Articulated bar fitted to the tank chassis to clear debris accumulation from between the tank and truck body during haul cycles.
| Qty | Part no. | Description |
|---|---|---|
| 1 | 1-2876-012 | Cannon splash guard |
| 1 | 1-2876-016 | Level sensor guard assembly |
| 2 | 1-2876-003 | Rock ejector assembly |
| 1 | 1-2876-011 | Mudflap assembly |
| 4 | 1-2876-021 | Bin pad assembly |
| 1 | 1-2876-023 | Hoist lock assembly |
| 1 | 1-2876-008 | Cabin guard kit |
| 1 | 1-2876-031 | Top access stairs and gate assembly |
| 1 | 1-2876-027 | Tilt restraint stay bar assembly |
| 1 | 1-2876-005 | Hose reel assembly |
| 1 | 1-2876-034 | Handrail kit |
| 1 | 1-2876-033 | Frame for ADE foam tank |
Talk to our engineering team for site-specific configuration advice. Additional options available for non-standard applications, factory-fitted or commissioning-ready depending on scope.
Product gallery
In the field
